SLIM CABLE SERIES

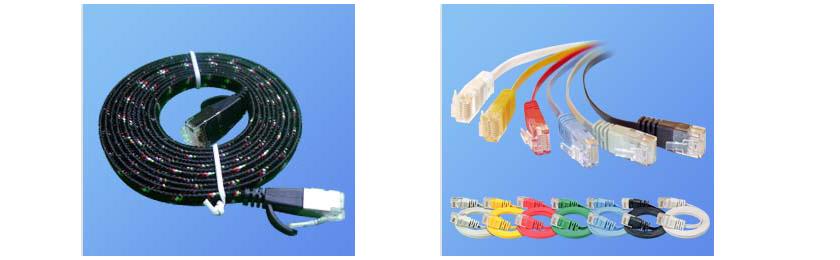

PATCH CORDS

FEATURE :

Meet EIA/TIA-568A and EIA/TIA-568B.2 or ISO/IEC-11801 transmission requirements for stranded wire.

LAN CABLE :

Cat. 5e, Cat. 6, UTP, STP 4P×30,32,36AWG Stranded Patch Cords

Main application:

Using in the networking cabinet: organized, save the space and good for increased airflow...

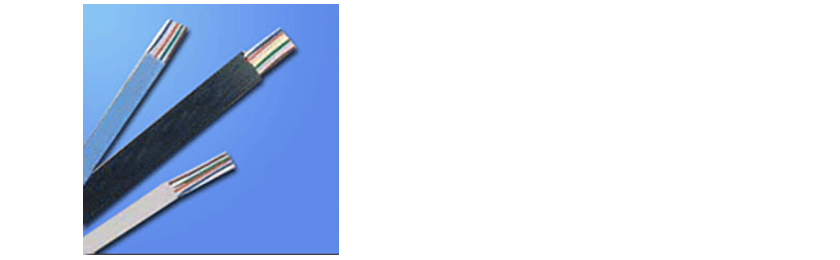

CABLE

Conductors :

30, 32, 36AWG , bare copper.

Insulation :

Polyolefin.

Color Code :

Pair 1 : Blue,White / Blue
Pair 2 : Orange,White / Orange
Pair 3 : Green,White / Green
Pair 4 : Brown,White / Brown

Jacket :

PVC

Standards :

EIA/TIA-568A and EIA/TIA-568B.2 Patch Cable

Applications :

Cat.5e
10 Base T(IEEE 802.3)
Fast Ethernet(IEEE 802.3u)
100vg-AnyLAN(IEEE 802.12)
Token Ring (IEEE 802.5)
TP-PMD (ANSI X3T9.5)
100 Mbps CDDI
ATM 155
Cat.6
1000 Base T(IEEE 802.3)
100 Base TX(IEEE 802.3)
100 Base VG
ATM 155 Mbps
FDDI / CDDI 100 Mbps
